• The LRF1200A1 laser ranging module is a new, lightweight, and compact device operating at a wavelength of 905 nm. It has a maximum range of ≥1200 meters and uses a UART-TTL interface. The module supports test software, which is convenient for further development.
  • The LRF1200A1 laser ranging module is a new, lightweight, and compact device operating at a wavelength of 905 nm. It has a maximum range of ≥1200 meters and uses a UART-TTL interface. The module supports test software, which is convenient for further development.
  • The LRF1200A1 laser ranging module is a new, lightweight, and compact device operating at a wavelength of 905 nm. It has a maximum range of ≥1200 meters and uses a UART-TTL interface. The module supports test software, which is convenient for further development.
  • The LRF1200A1 laser ranging module is a new, lightweight, and compact device operating at a wavelength of 905 nm. It has a maximum range of ≥1200 meters and uses a UART-TTL interface. The module supports test software, which is convenient for further development.
  • The LRF1200A1 laser ranging module is a new, lightweight, and compact device operating at a wavelength of 905 nm. It has a maximum range of ≥1200 meters and uses a UART-TTL interface. The module supports test software, which is convenient for further development.

905nm laser ranging distance sensor 1200m

905nm laser ranging distance sensor 1200m

Model: LRF1200A2-01
$120.00 USD
$120.00 USD
Shipping calculated at checkout.

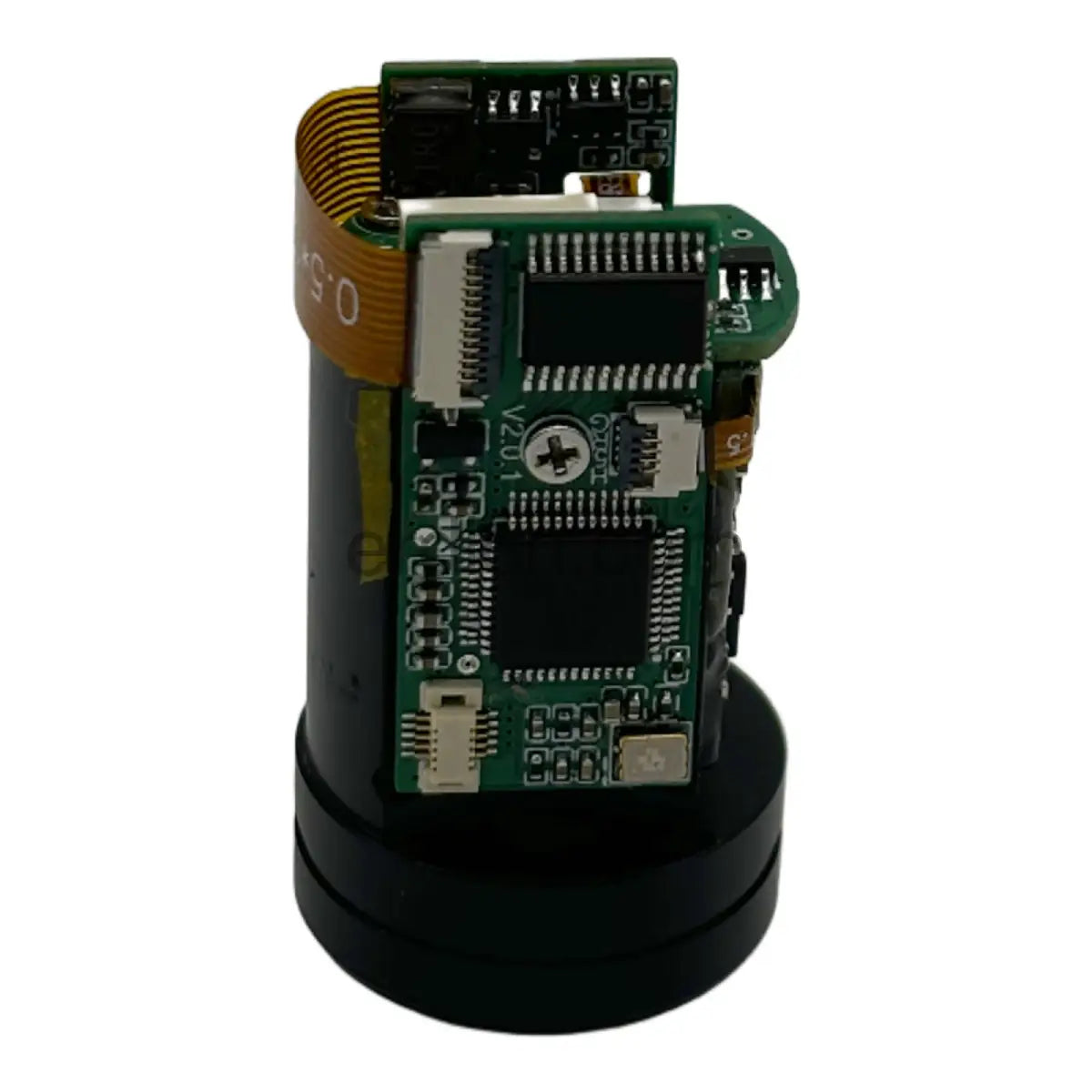

The LRF1200A2 is a professional-grade 905nm laser rangefinder module designed for precision and durability in demanding applications. With a Class 1 eye-safe rating and ≤6mrad divergence, it delivers accurate measurements from 5m to 1200m (on a 3m x 3m target) with 0.1m display resolution and ≥98% reliability. The compact Φ25mm × 40mm housing (≤18g) integrates seamlessly into systems, while its -20°C to +55°C operating range and IP67-rated head ensure resilience in harsh environments. Featuring low power consumption (≤1W operating, ≤400mW standby), UART (TTL 3.3V) interface, and CE/FCC/RoHS2.0 compliance, it excels in industrial automation, robotics, and surveying. Additional ruggedness comes from 1200g impact resistance, 1000g/ms anti-vibration, and 6kV/8kV ESD protection, making it a reliable choice for critical operations.
905nm laser ranging distance sensor 1200m

$120.00 USD

Project

Technical data

Model

LRF1200A2

Laser Wavelength

905nm

Eye Safety

Class 1

Divergence Angle

≤6mrad

Display accuracy

0.1m

Launch Lens Diameter

Φ6.6mm

Receiver Lens Diameter

Φ18mm

Measuring Range（3m x 3m Target)

≥5~1200m

Display Accuracy

0.1m

Ranging Frequency

1~3Hz

Accurately measuring probability

≥98%

Start Time

≤500ms

Data Interface

UART（TTL_3.3V）

Supply Voltage

3.3+/-0.1V

Standby Power Consumption

≤400mW

Operating Power Consumption

≤1W

Weight

≤18g

Dimention

Ф25mm×40mm

Operation Temperature

-20~＋55℃

Storage Temperature

-55~＋65℃

Impact Resistance

1200g，1ms

Anti-vibration

1000g/ms (10 times/s in the optical axis direction)

Dependability

MTBF≥1500 h

Protection Class

IP67(Head piece)

ESD Class

(Lens position)

Contact discharge 6kV

Air discharge 8kV

Electromagnetic Compatibility (EMC)

CE/FCC Certification

Eco-friendly

RoHS2.0
2D Dimension Image
Communication Interface
Download Product Instructions Download PC Upper Computer 3D Mechanical Structure
