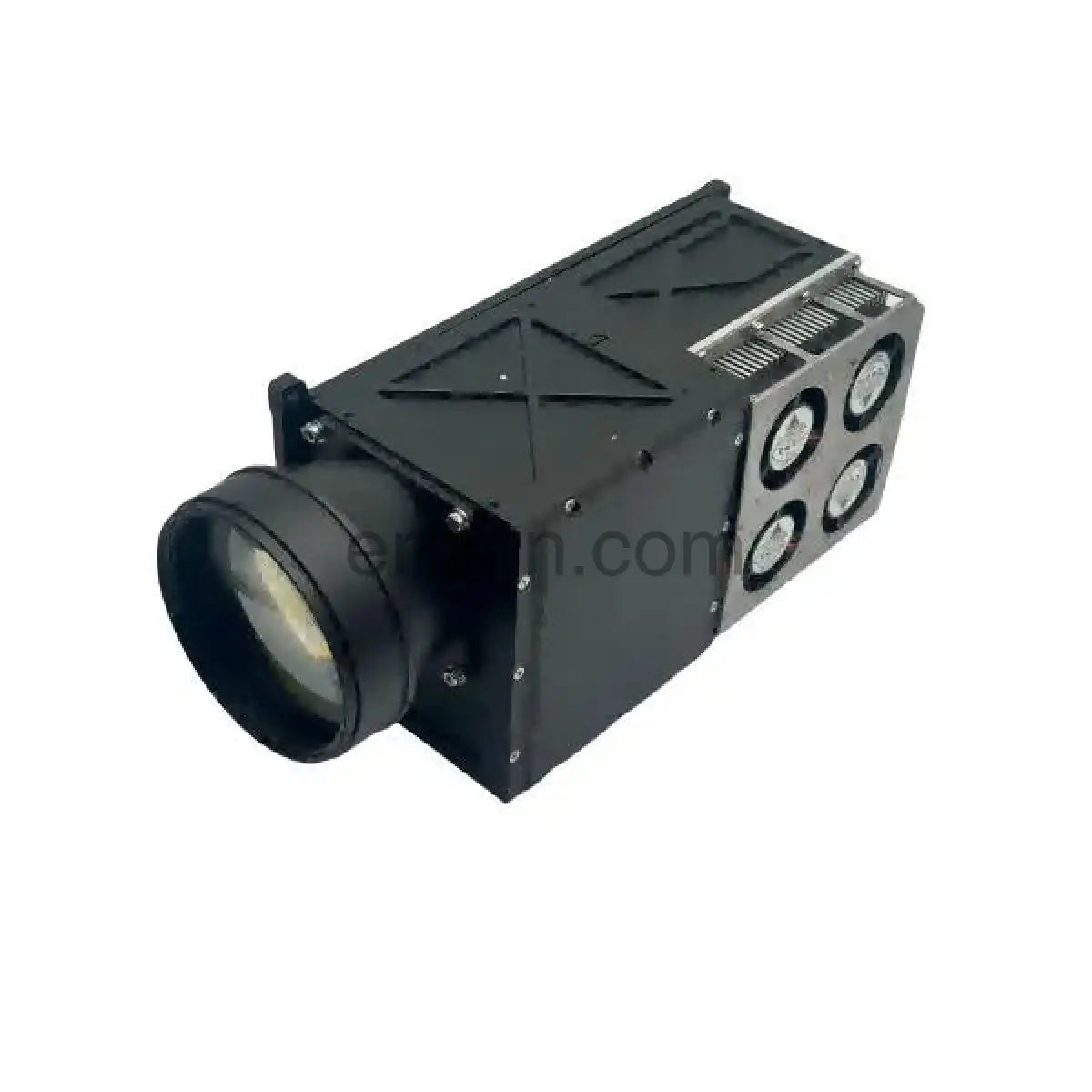

1064nm Laser Ranging Target Designator with Single-Lens 100 mJ
1064nm Laser Ranging Target Designator with Single-Lens 100 mJ
Couldn't load pickup availability
|
Project |
Performance Indicators |
||||
|
Model |
LR100K30 |
||||
|
Laser Type |
NdYAG |
||||
|
Laser Wavelength |
1.064 μm± 1μm |
||||
|
Pulse Energy |
≥100mJ |
||||
|
Adjacent Pulse Energy Fluctuation Range |
≤5% |
||||
|
Laser Class (according to IEC 60825-1 Ed 1.2 of 2007-03) |
Class 4 |
||||
|
Receive And Transmit Common Aperture Diameter |
71mm |
||||
|
Irradiation Frequency |
0~25Hz |
||||
|
Ranging Frequency |
0~25Hz |
||||
|
Laser encoding accuracy |
＜1.5us |
||||
|
Pulse Width |
10~15ns |
||||
|
Beam Divergence |
＜0.25mrad |
||||
|
Beam Shape |
Square |
||||
|
Exposure Time |
Long Exposure |
2 minutes |
|||
|
|
Emergency Exposure |
40 seconds |
|||
|
Power-up Preparation Time |
Normal temperature |
<30 seconds |
|||
|
|
High temperature |
<30 seconds |
|||
|
|
Low temperature |
<60 seconds |
|||
|
Measuring Range （Reflectance 30%; visibility ≥ 8km.） |
Big Target（4m×6m) |
≥30000m |
|||
|
|
NATO objective(2.3m×2.3m) |
≥23000m |
|||
|
|
People(0.5m×1.7m) |
≥16000m |
|||
|
|
Drones(0.2m×0.3m) |
≥12000m |
|||
|
Ranging Accuracy |
±2 m |
||||
|
Resolution |
1m |
||||
|
Precision Rate |
98% |
||||
|
False Alarm Rate |
2% |
||||
|
Multiple target discrimination |
3 goals |
||||
|
Multiple target Range Logic |
Optional, target interval is 150 meters |
||||
|
Continuous Ranging Time |
≥10min, rest: 30s |
||||
|
Insulation resistance |
Environmental conditions |
Standard Atmospheric Conditions |
|||
|
|
Insulation Resistance |
≥20MΩ |
|||
|
|
Megohmmeter Output Voltage |
100V |
|||
|
Service Life |
≥2 million times |
||||
|
Operating Temperature |
-40℃～+60℃ |
||||
|
Storage Temperature |
-50℃～+65℃ |
||||
|

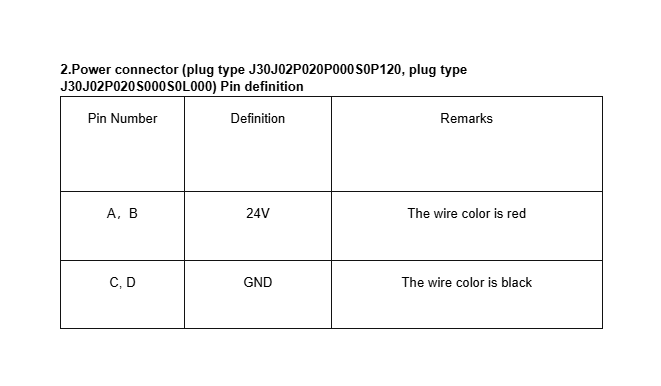

Supply Voltage |
Voltage range DC18V ~ 36V, power supply characteristics to meet the requirements of GJB181B-2012 for the relevant requirements set out in the electrical equipment |
||||
|
Power Wastage |
Standby Power Consumption |
48W |
|||
|
|
Average power consumption |
160W |
|||
|
|
Peak Power Consumption |
240W |
|||
|
Weight |
≤2300g |
||||
|

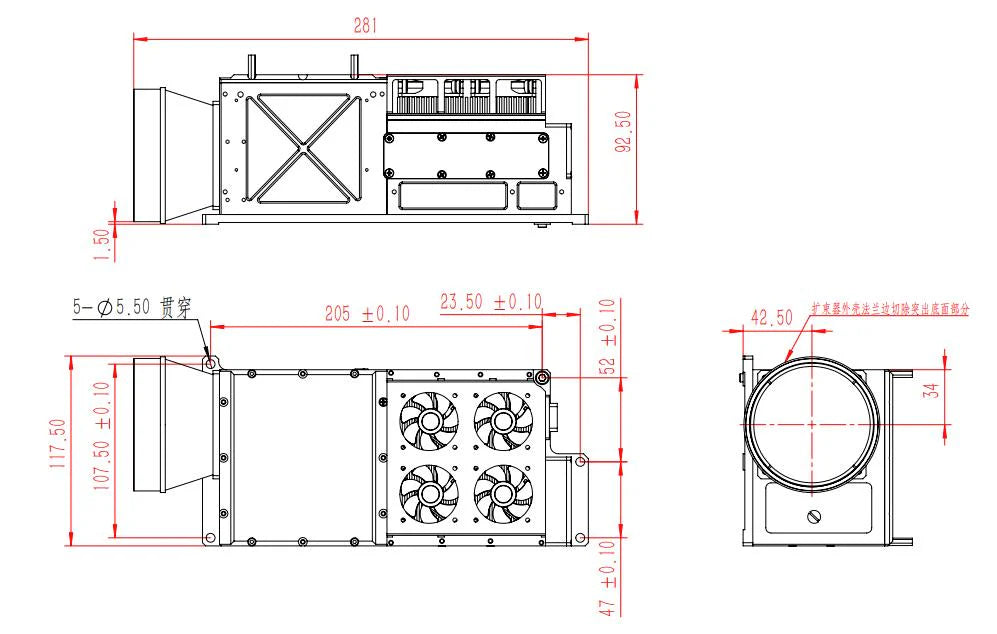

Dimension (L×W×H) |
≤270X110X90mm |
||||
|

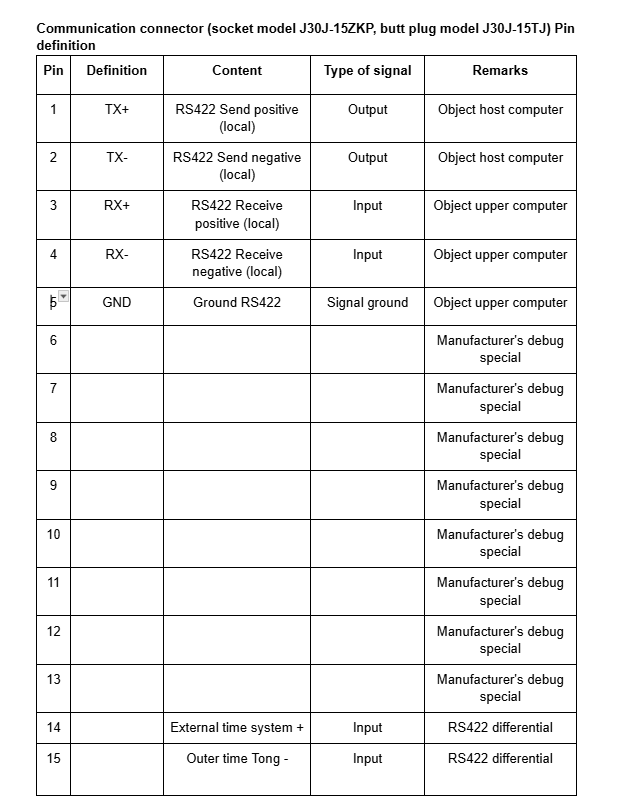

Data Interface |
RS422 |
||||
|
Electrical Interface |
J30JM1-37ZKP29 |
||||
|
Anti-vibration |
General low-limit integrity vibration test (GJB150.16A-2009) |
||||
|
Impact Resistance |
75g/6ms |
||||
|
Protection Class |
IP67 |
||||
|
Electromagnetic Compatibility (EMC) |
CE/FCC Certification CE/FCC |
||||
|
Eco-friendly |
RoHS2.0 |
||||
