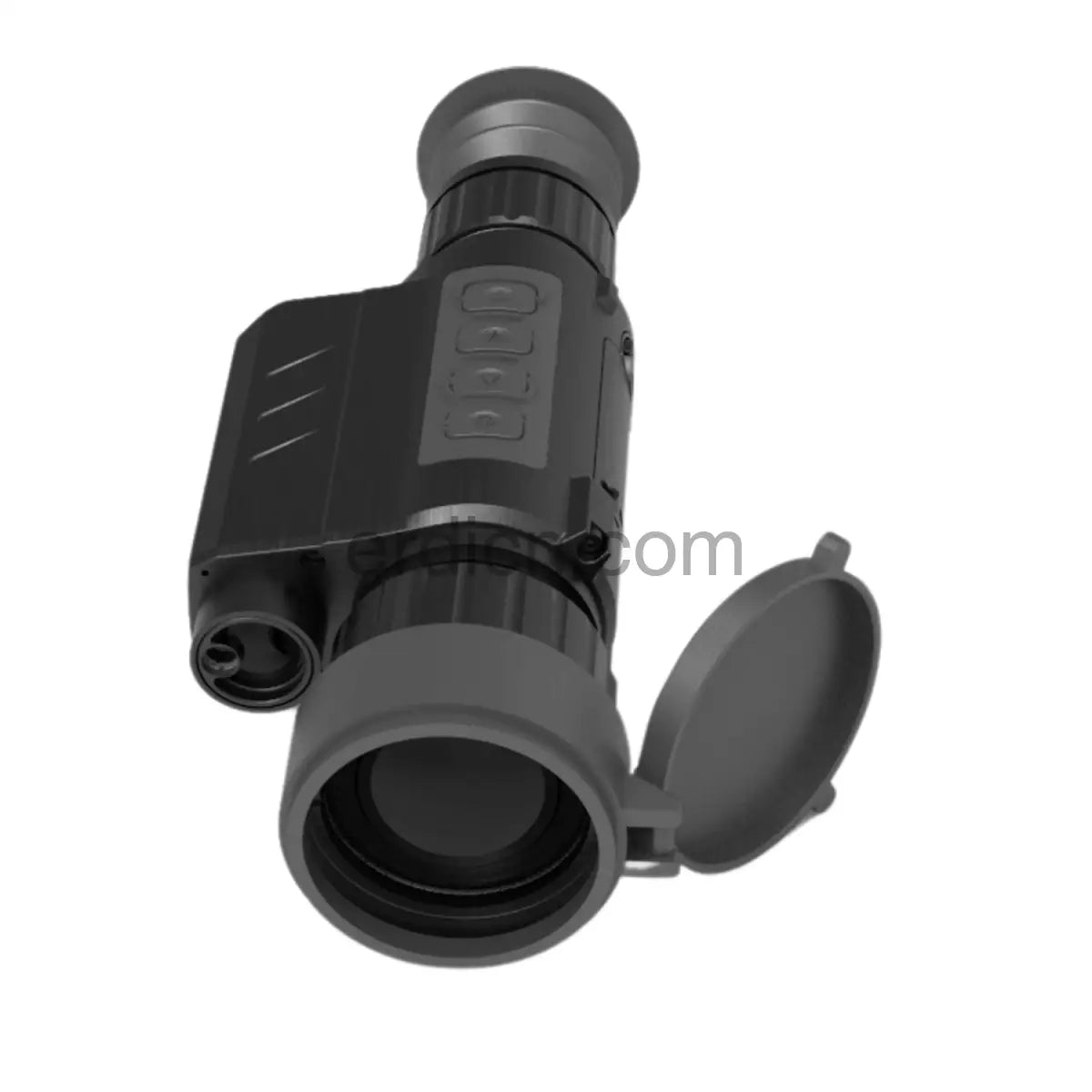

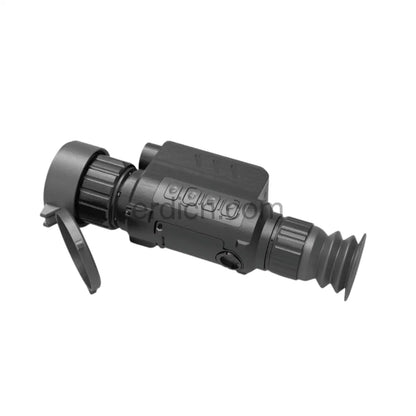

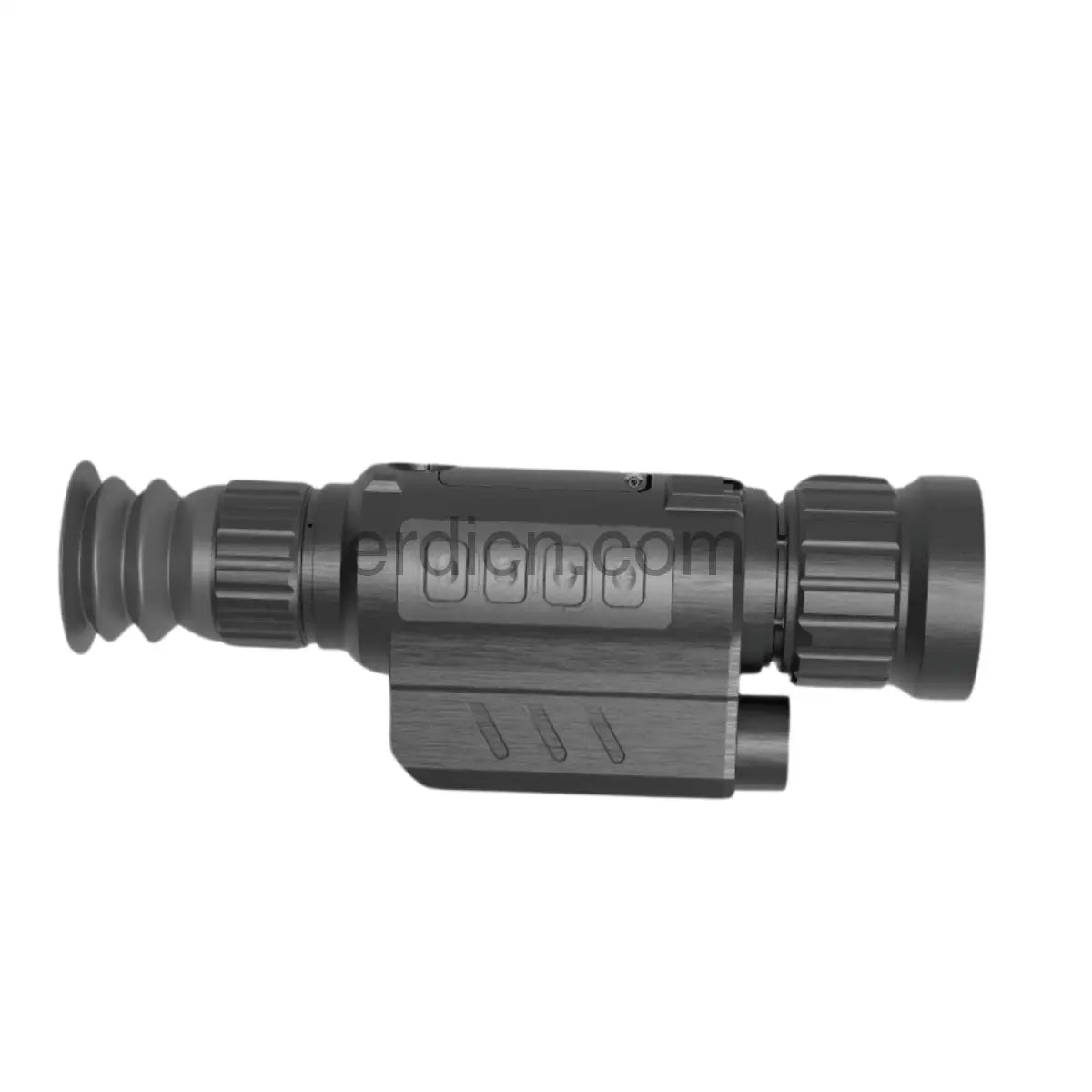

Infrared Aiming Scope Tactical Rifle Optics with 640x512 Resolution 50mm Lens

Category

R640K50

Parameters of Infrared Detector

Resolution, Pixels

640×512

Pixel Size

12 μm

NETD (Noise Equivalent Temperature Difference)

≤50mk

Frame Rate

50Hz

Optical Parameters

Objective Lens Focal Length

50mm

Objective Lens Aperture

F1.0

Objective Lens Field of View (FOV)

8.7×7.0

Focusing Method: Manual

Manual

Eyepiece Exit Pupil Distance

55mm

Eyepiece Exit Pupil Diameter

6mm

Eyepiece Diopter Adjustment

-5D~+5D

Observation Distance (Human)

700m

Display

Type

AMOLED

Resolution

1024×768

Size

0.39

Brightness adjustment

Support, up to 200nit

Power supply

Battery type

Rechargeable lithium battery

Battery parameters

18650（3400mah）

Number of batteries

2

Battery voltage

Nominal 3.7V

External power supply

5V /2A USB TYPE C

Operating time (at 25℃)

10h

Peripheral devices

Electronic compass

Support

Attitude sensor

Support

WIFI

2.4G

Laser ranging wavelength

905nm

Laser ranging accuracy

±1m

Laser ranging distance

1Km

Physical parameters

Weight

860g (including battery)

Dimension

245mm×65mm×100mm (including lens cap)

Protection level

IP67

Impact

1000g/0.4ms

Operating temperature

-20℃~50℃

System Functions

Recording/Photographing

Support

Video and Image Playback

Support

Electronic Zoom

1X, 2X, 4X

Internal Storage

32GByte

Hotspot Tracking

Support

Picture-in-Picture (PIP)

Support

Color Palette

White Hot, Black Hot, Red Hot, Fusion

Brightness Adjustment

Support

Contrast Adjustment

Support

Image Correction

Automatic, Manual

Target Trajectory Prediction

Support

Target Tracking

Support

Target Recognition

Support

WiFi Hotspot

Support

Standby Mode

Support

Reticle Pattern Adjustment

Support, 5 styles, 6 colors

Measurement Unit Settings

Metric, Imperial

Time Settings

Automatic, Manual
