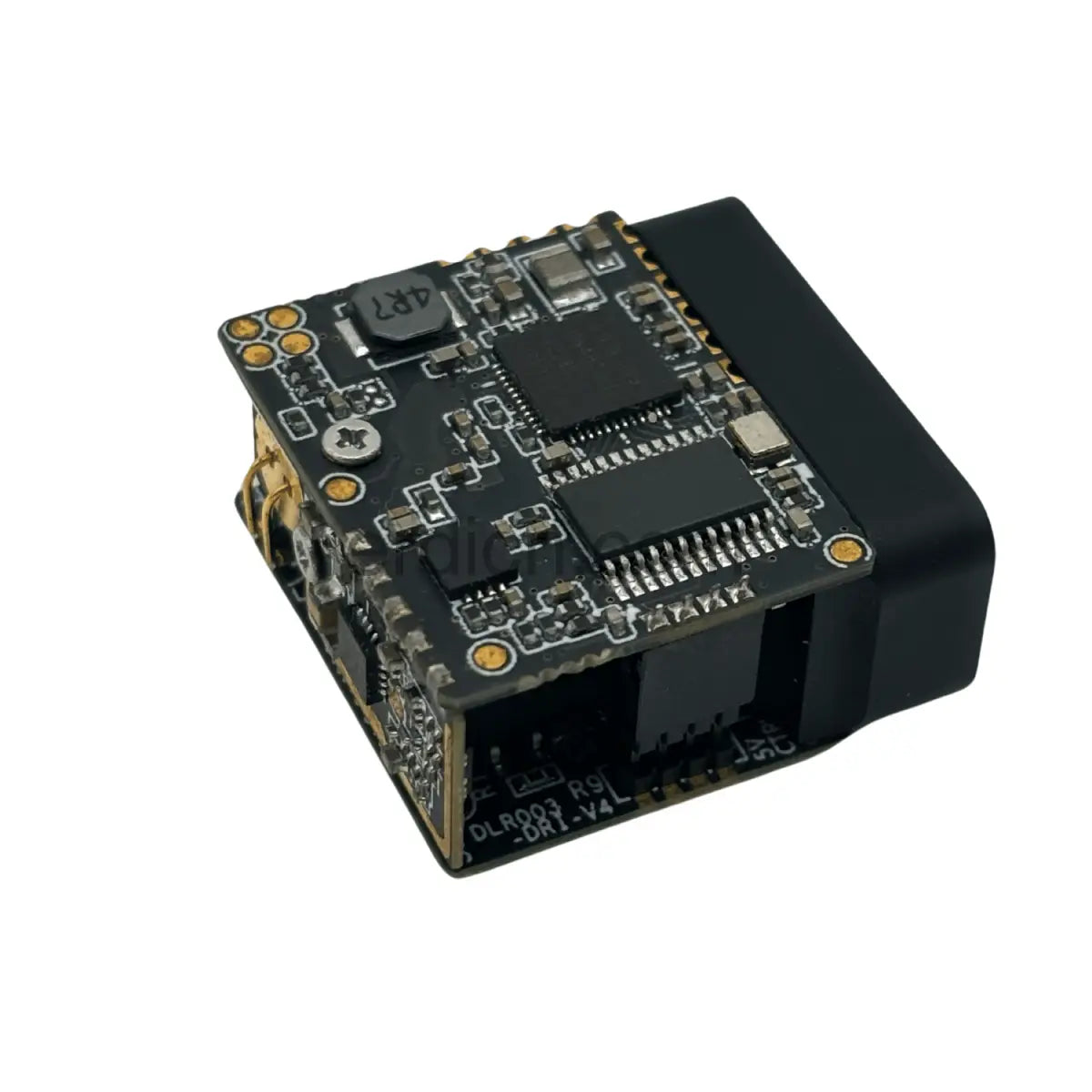

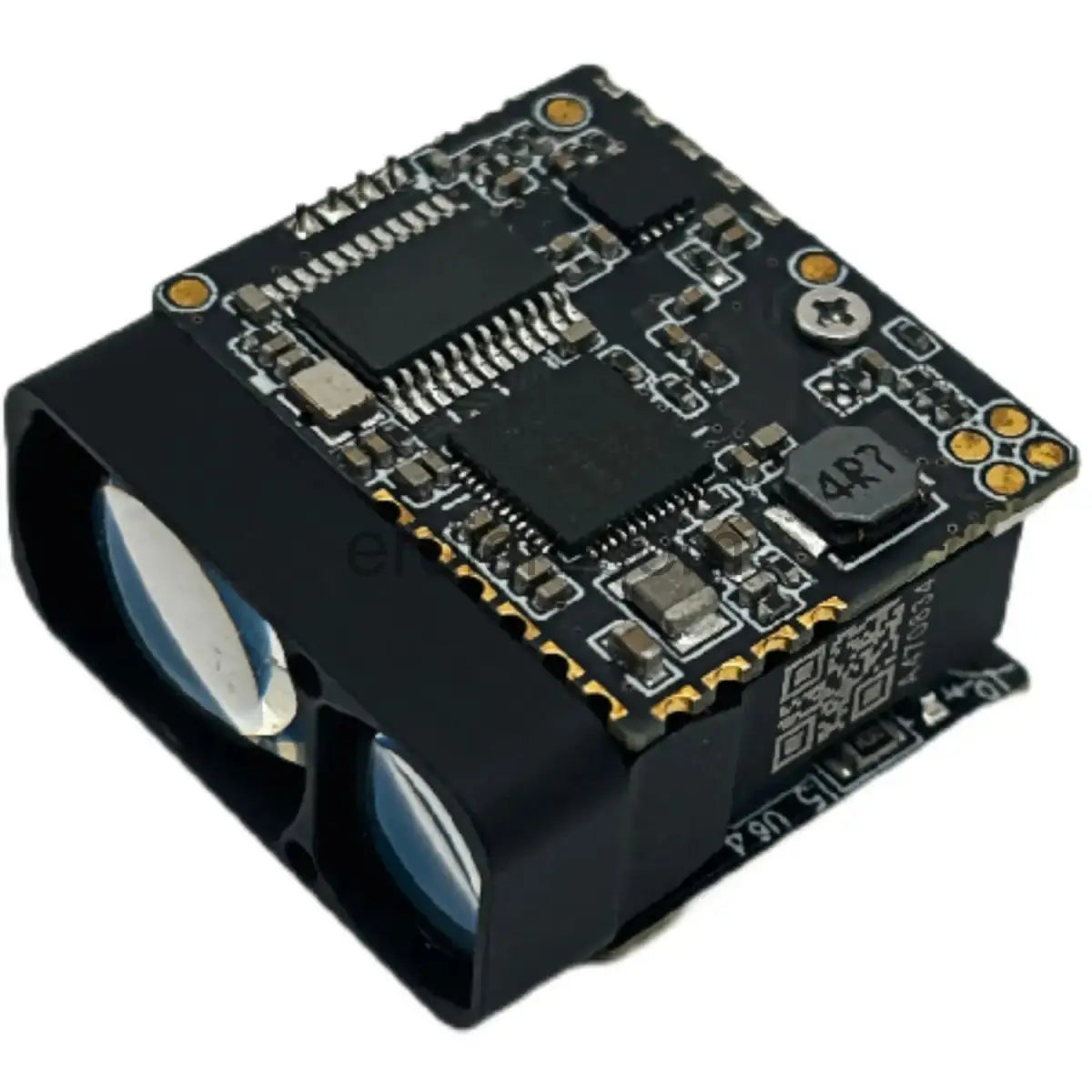

905nm Semiconductor Multi-Pulse Laser Rangefinder Module 2000m

905nm Semiconductor Multi-Pulse Laser Rangefinder Module 2000m

Model: LRF2000A
$210.00 USD
$210.00 USD $230.00 USD
Shipping calculated at checkout.
The LRF2000A is a cutting-edge 905nm pulsed laser rangefinder module that delivers exceptional 2000-meter measurement range in an ultra-compact 25×26×13mm package weighing just 10g. Designed for professional long-distance applications, this Class 1 eye-safe module features ±1m accuracy, 3Hz ranging frequency (adjustable for distance), and ≥98% precision rate with ≤1% false alarms. Its UART (TTL_3.3V) interface, bundled upper-computer software, and detailed protocol instructions enable seamless secondary development for integration into custom systems.Ideal for:Handheld rangefinders，Micro UAVs and drones，Rangefinder scopes and optics, Industrial automation and surveying.
905nm Semiconductor Multi-Pulse Laser Rangefinder Module 2000m

$210.00 USD

Project

Technical data

Model

LRF2000A

Laser Wavelength

905nm

Eye Safety

Class 1

Divergence Angle

1×12mrad

Receiving Field of View (FOV)

~20mrad

Launch Lens Diameter

Φ10×7.5mm

Receiver Lens Diameter

Φ15×10mm

Measuring Range（3m x 3m Target)

≥5~2000m

Ranging Accuracy

±1m

Ranging Frequency

3Hz（5~45m）；0.75~3Hz（45~2000m）

Precision Rate

≥98%

False Alarm Rate

≤1%

Data Interface

UART（TTL_3.3V）

Supply Voltage

DC 3~5 V

Standby Power Consumption

≤1mW

Operating Power Consumption

≤1.5W

Weight

10±0.5g

Dimention (L×W×H)

25×26×13mm

Operation Temperature

-40~＋60℃

Storage Temperature

-55~＋65℃

Impact Resistance

1200 g，1 ms

Anti-vibration

5～50～5 Hz，1 Octave range /min，2.5 g

Dependability

MTBF≥1500 h

Activation Time

≤200ms；

Protection Class

IP67

ESD Class

(Lens position)

Contact discharge 6kV

Air discharge 8kV

Electromagnetic Compatibility (EMC)

CE/FCC Certification

Eco-friendly

RoHS2.0

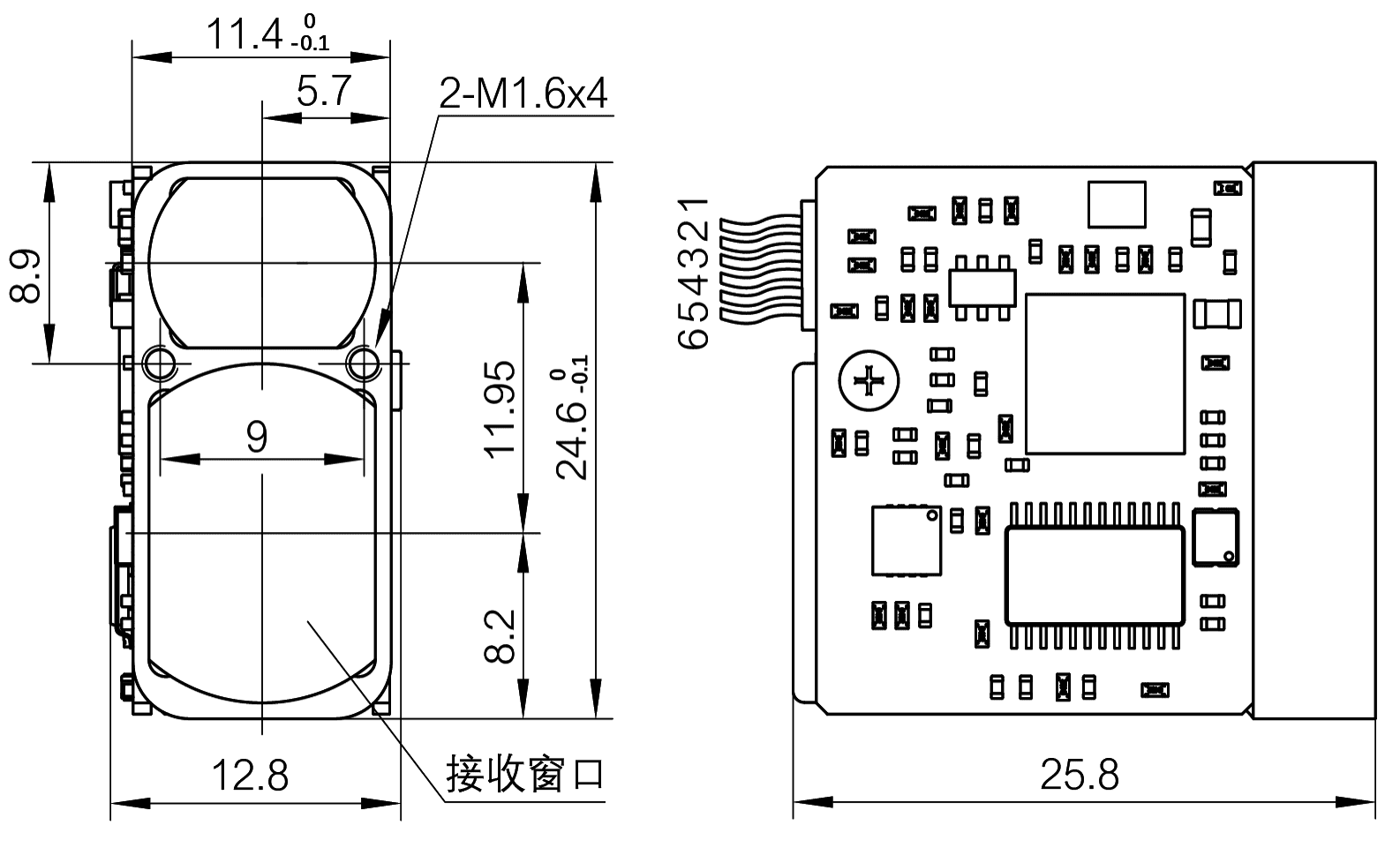

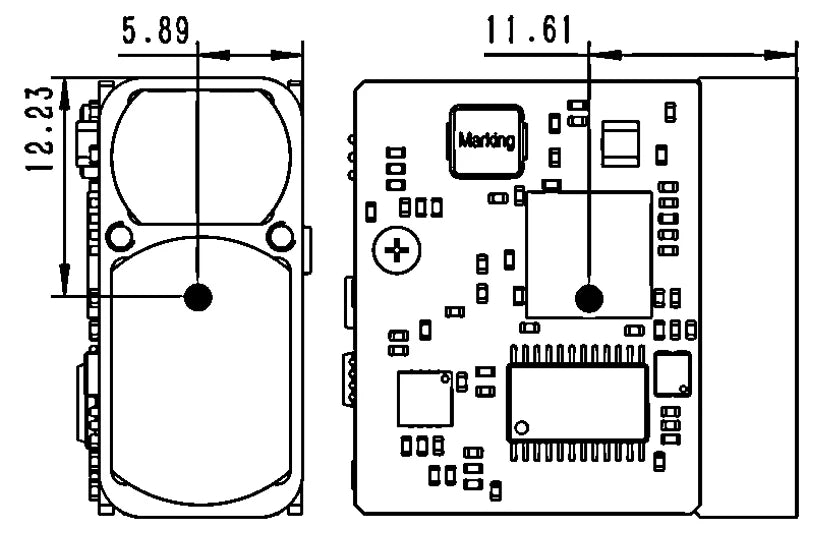

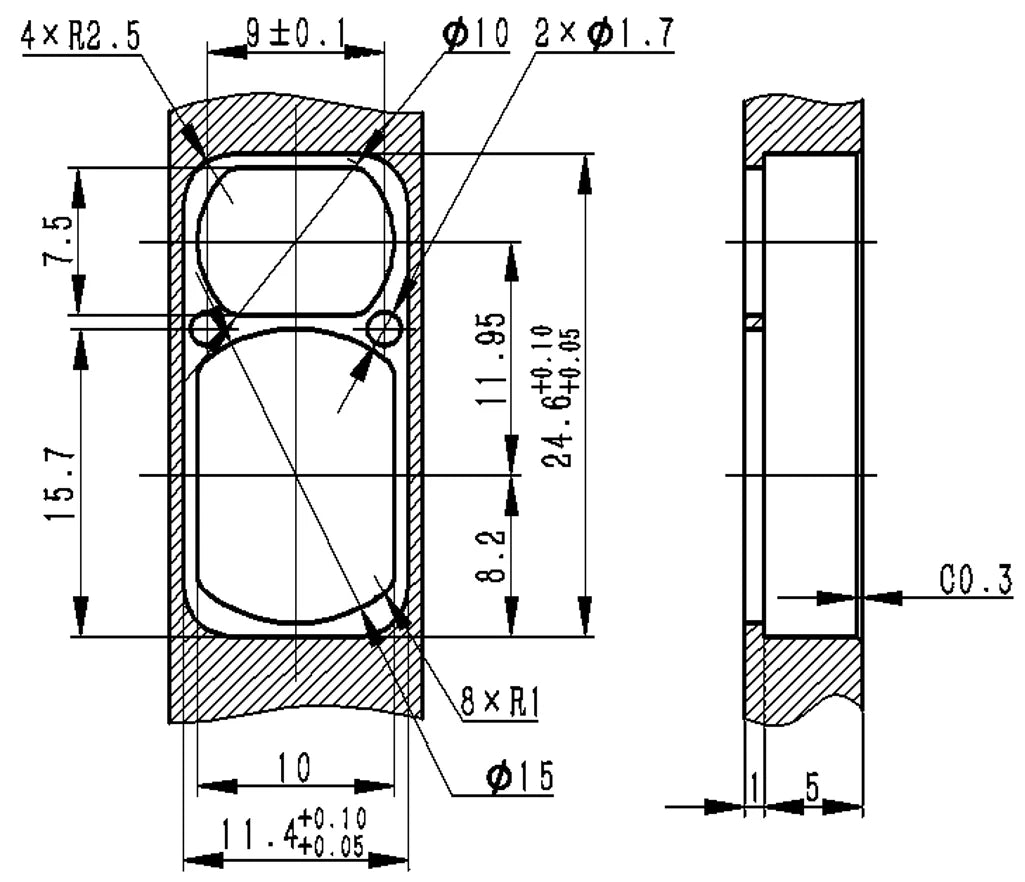

2D Dimension Image 2D Dimension Image 2D Dimension Image 2D Dimension Image

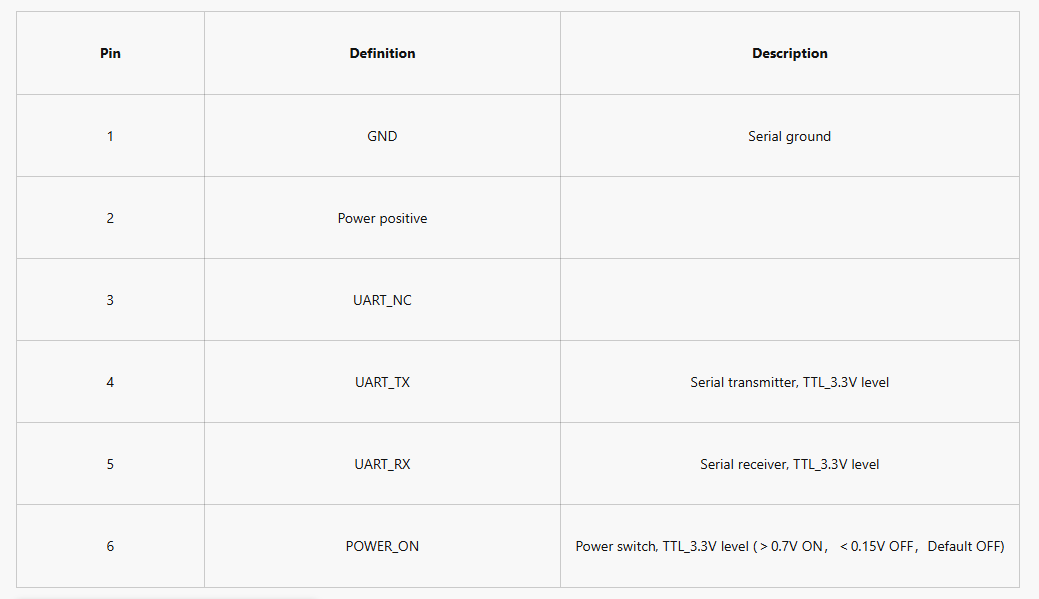

Communication Interface Communication Interface
Download Product Instructions Download PC Upper Computer
