Laser Distance Measurement Module – Compact & Long-Range Precision Laser Rangefinder Module

Laser Distance Measurement Module – Compact & Long-Range Precision Laser Rangefinder Module

Model: LRF1500A-01
$180.00 USD
$180.00 USD $200.00 USD
Shipping calculated at checkout.

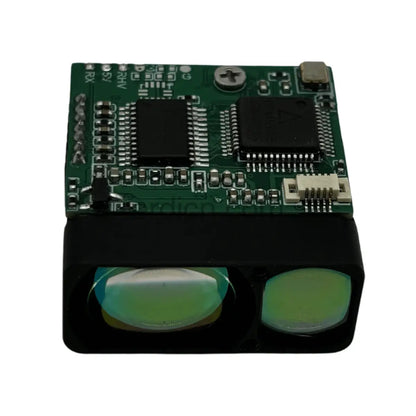

The LRF1500A is an advanced 905nm laser ranging module that combines lightweight design (≤12g) with exceptional 1500m maximum range capability. Featuring a compact 14×25×26mm form factor, this Class 1 eye-safe module delivers ±1m accuracy (10-100m) and ±(1+0.4%L)m beyond 100m, with 0.1m display resolution for precise measurements. Its UART-TTL interface and included test software enable easy integration and development across multiple applications. With low power consumption (≤1.5W operating, ≤700mW standby) and reliable performance in -20°C to +55°C environments, the LRF1500A is ideal for aviation, communications, geological surveys, law enforcement, and outdoor sports. The module's combination of long-range capability, compact size, and measurement accuracy makes it perfect for professional field applications requiring dependable distance measurement.
Laser Distance Measurement Module – Compact & Long-Range Precision Laser Rangefinder Module

$180.00 USD


Project

Technical data

Model

LRF1500A

Laser Wavelength

905nm

Eye Safety

Class 1

Divergence Angle

≤6mrad

Display accuracy

0.1m

Launch Lens Diameter

7mm×10mm

Receiver Lens Diameter

15mm×10mm

Measuring Range（3m x 3m Target)

≥10~1500m

Ranging Accuracy

10≤L≤100m:±1m

L＞100m:±(1+L*0.4%)m

Display Accuracy

0.1m

Ranging Frequency

≥1Hz

Accurately measuring probability

≥98% (10-400)m;

≥80% (401-1500)m

Start Time

≤500ms

Data Interface

UART（TTL_3.3V）

Supply Voltage

3.3+/-0.1V

Standby Power Consumption

≤700mW

Operating Power Consumption

≤1.5W

Weight

≤12g

Dimention

14mm×25mm×26mm

Operation Temperature

-20~＋55℃

Storage Temperature

-55~＋65℃

Impact Resistance

1200g，1ms

Anti-vibration

800g/ms (10 times/s in the optical axis direction)

Dependability

MTBF≥1500 h

Protection Class

IP67(Head piece)

ESD Class

(Lens position)

Contact discharge 6kV

Air discharge 8kV

Electromagnetic Compatibility (EMC)

CE/FCC Certification

Eco-friendly

RoHS2.0


2D Dimension Image
Communication Interface Communication Interface
Download Product Instructions Download PC Upper Computer
