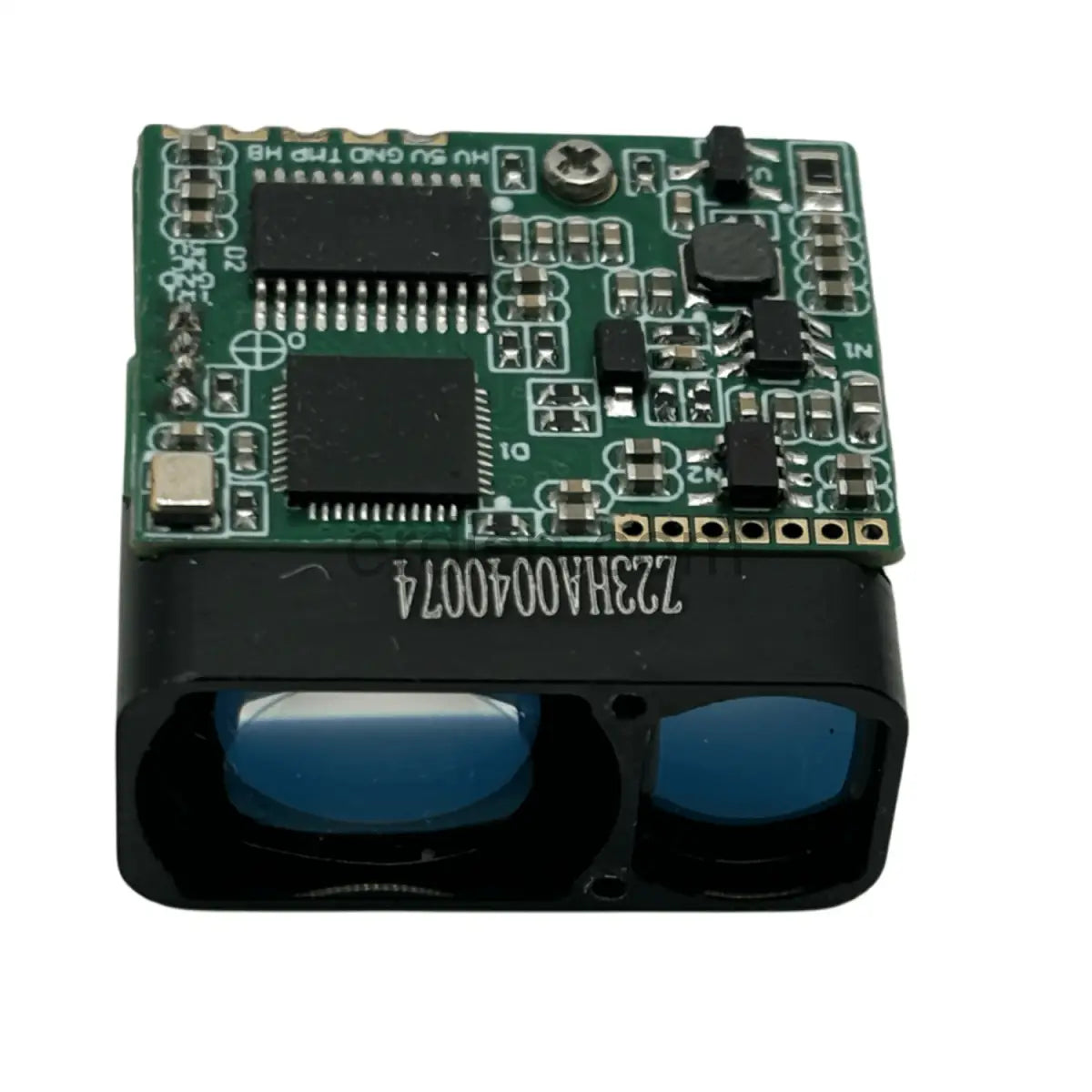

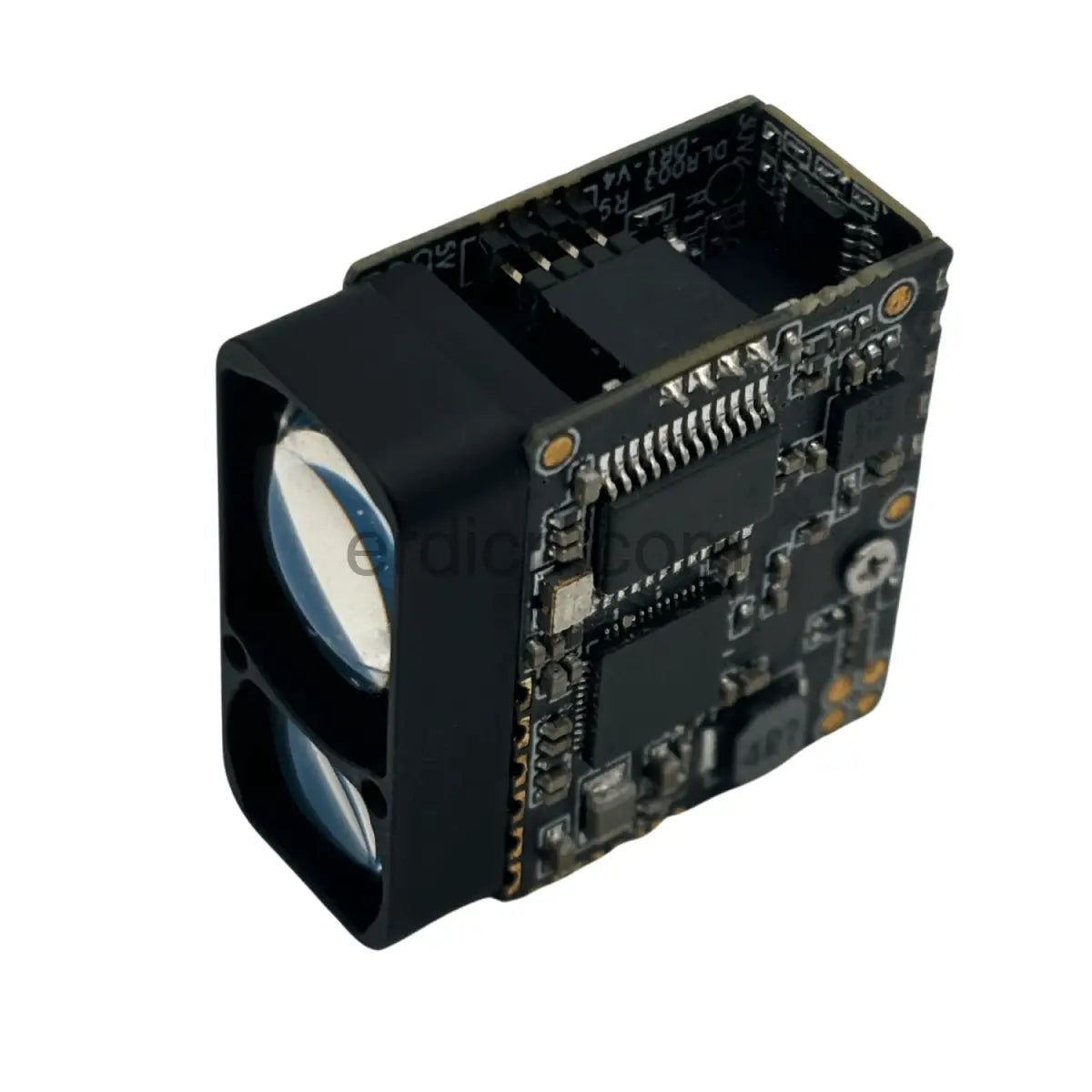

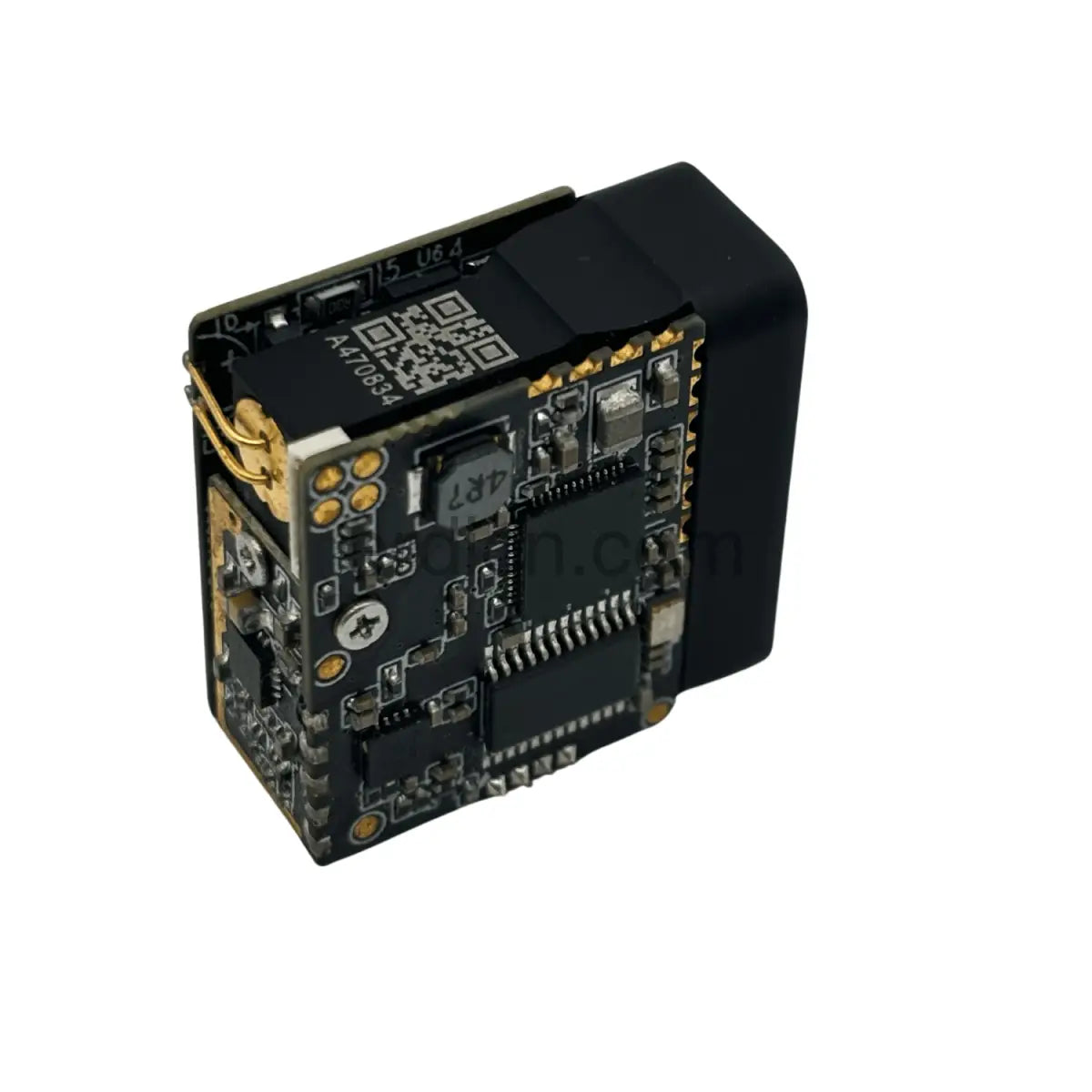

905nm High-Performance Semiconductor Multi-Pulse Laser Rangefinder Module 1200m

905nm High-Performance Semiconductor Multi-Pulse Laser Rangefinder Module 1200m

Model: LRF1200A-01
$150.00 USD
$150.00 USD
Shipping calculated at checkout.
The ERDI LRF1200A is a high-performance semiconductor laser rangefinder module engineered for versatile applications such as handheld rangefinders, micro UAVs, and rangefinder scopes. Utilizing a 905nm laser diode, it delivers highly accurate distance measurements from 5 up to 1200 meters. Designed for seamless integration, the LRF1200A features a UART (TTL_3.3V) data transmission interface and comes with user-friendly upper computer software and a comprehensive communication protocol command set, simplifying secondary development. Compact, reliable, and easy to implement, the LRF1200A is the ideal choice for developers and manufacturers seeking precision, performance, and flexibility across a wide range of laser measurement solutions.
905nm High-Performance Semiconductor Multi-Pulse Laser Rangefinder Module 1200m

$150.00 USD

Project

Technical data

Model

LRF1200A

Laser Wavelength

905nm

Eye Safety

Class 1

Divergence Angle

1×6mrad

Receiving Field of View (FOV)

≤20mrad

Launch Lens Diameter

Φ10×7.5mm

Receiver Lens Diameter

Φ15×10mm

Measuring Range（3m x 3m Target)

≥5~1200m

Ranging Accuracy

±1m

Ranging Frequency

3Hz（5~45m）；0.75~3Hz（45~1200m）

Precision Rate

≥98%

False Alarm Rate

≤1%

Data Interface

UART（TTL_3.3V）

Supply Voltage

DC 3~5 V

Standby Power Consumption

≤1mW

Operating Power Consumption

≤1.5W

Weight

10±0.5g

Dimention (L×W×H)

25×26×13mm

Operation Temperature

-40~＋60℃

Storage Temperature

-55~＋65℃

Impact Resistance

1200 g，1 ms

Anti-vibration

5～50～5 Hz，1 Octave range /min，2.5 g

Dependability

MTBF≥1500 h

Activation Time

≤200ms；

Protection Class

IP67

ESD Class

(Lens position)

Contact discharge 6kV

Air discharge 8kV

Electromagnetic Compatibility (EMC)

CE/FCC Certification

Eco-friendly

RoHS2.0



2D Dimension Image 2D Dimension Image 2D Dimension Image 2D Dimension Image
Communication Interface Communication Interface
Download Product Instructions Download PC Upper Computer
